Encapsulated Control Line

Encapsulated Control Line Solution

BAOFENG provides encapsulated control line solutions based on long-length seamless coiled tubing for oil & gas, offshore and downhole applications.

The encapsulation forms a protective barrier around the tubing, helping protect the control line from mechanical damage, metal-to-metal contact and exposure to demanding service environments during installation and operation.

Why Encapsulation?

Control lines used in downhole and oilfield systems may be exposed to scratching, denting, crushing and contact with surrounding equipment during installation and operation.

Encapsulation adds an additional protective layer around the tubing and can help:

• Protect tubing against scratches, dents and crushing
• Reduce direct metal-to-metal contact
• Protect control lines exposed to aggressive downhole environments
• Integrate multiple individual lines into a more manageable installation

These functions are specifically highlighted in BAOFENG’s encapsulated control line application materials.

Typical Applications

Encapsulated control lines can be used in:

• Downhole hydraulic control systems
• Subsurface Safety Valve control lines
• Chemical injection lines
• Wellhead control systems
• Offshore and subsea control systems
• Multi-line instrument and control installations

The solution is particularly suitable where long continuous tubing must be deployed through mechanically demanding or corrosive environments.

Tubing Material Options

Typical tubing materials include:

• 304L
• 316 / 316L
• 904L
• Duplex 2205
• Super Duplex 2507
• Alloy 625
• Alloy 825

BAOFENG’s own encapsulated control line materials specifically include these stainless steel, duplex and nickel alloy grades.

Material selection is determined according to corrosion environment, pressure, temperature and project requirements.

Long-Length Seamless Construction

The tubing inside the encapsulated control line can be supplied in long continuous seamless lengths.

Long-length seamless tubing reduces the number of intermediate joints along the installation route, helping lower potential leakage points and simplifying field installation.

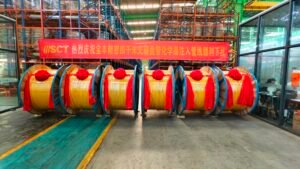

BAOFENG’s seamless coiled tubing capability includes continuous lengths exceeding 4,000 metres for suitable specifications.

From Single Line to Integrated Control Line

Depending on the project requirement, the solution can be configured as:

Single seamless control line → Protective encapsulation → Multi-line integration where required → Project-specific coil and delivery configuration

Encapsulation can therefore be used not only to protect an individual tube, but also to support the integration and deployment of multiple control lines.

BAOFENG’s technical materials note that this type of integration can reduce the equipment and manpower required for installing multiple separate components.

Project-Based Configuration

The encapsulated control line configuration depends on the actual installation environment.

To select a suitable solution, the following information should be confirmed:

• Service / control function
• Tubing material
• OD × WT
• Working pressure
• Operating temperature
• Required continuous length
• Number of lines
• Installation environment
• Encapsulation requirement

BAOFENG can then recommend a suitable seamless tubing and encapsulation configuration according to the project conditions.
