Hydraulic Control Line

Hydraulic Control Line Solution

BAOFENG provides long-length seamless coiled tubing for hydraulic control systems used in oil & gas, offshore and subsea applications. Continuous seamless construction reduces intermediate joints and potential leakage points while supporting installation over long routing distances.

For demanding control systems, tubing material, dimensions, continuous length, pressure requirements, testing and delivery configuration can be selected according to the operating environment and project specifications.

Why Long-Length Seamless Tubing?

Traditional hydraulic control systems may require multiple sections, fittings or flexible hoses over long installation distances. Every additional connection introduces another potential leakage or maintenance point.

BAOFENG seamless coiled tubing can be supplied in continuous long lengths, significantly reducing field connections. BAOFENG’s coiled tubing capability includes single seamless lengths exceeding 4,000 metres, with pressure capability above 100 MPa available for suitable material and dimensional combinations.

This provides important advantages for remote, offshore and downhole control systems where access, maintenance and leakage control are critical.

Material Options

Material selection is based on pressure, temperature, corrosion environment and service conditions.

Typical materials for hydraulic control lines include:

• 316L / UNS S31603
• Duplex 2205 / UNS S32205
• Super Duplex 2507 / UNS S32750
• Alloy 625 / UNS N06625
• Alloy 825 / UNS N08825
• Monel 400 / UNS N04400

BAOFENG’s hydraulic control line material data specifically covers these stainless steel, duplex, super duplex and nickel alloy grades.

Typical Standards

Depending on the selected material grade, typical standards include:

• ASTM A269 — 316L
• ASTM A789 — Duplex 2205 / Super Duplex 2507
• ASTM B444 — Alloy 625
• ASTM B423 / B163 — Alloy 825
• ASTM B165 — Monel 400

The applicable standard is confirmed according to material selection and project requirements.

Typical Size Range

Common hydraulic control line dimensions include:

• Outside Diameter: 1/8″ to 5/8″ (3.18–15.88 mm)
• Wall Thickness: 0.019″ to 0.083″ (0.5–2.11 mm)

Common combinations include 1/4″, 3/8″, 1/2″ and 5/8″ OD tubing with different wall thicknesses according to pressure and service requirements.

Other dimensions and continuous lengths can be supplied according to project requirements.

Typical Applications

BAOFENG hydraulic control line solutions can support applications including:

• Subsurface Safety Valve (SSSV) control lines

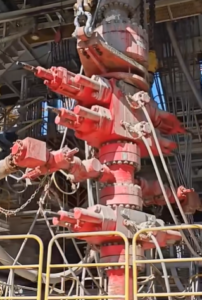

• Blowout Preventer (BOP) hydraulic control systems
• Downhole tool hydraulic control lines
• Wellhead control systems
• Offshore and subsea hydraulic control systems
• Instrument and remote-control hydraulic lines

BAOFENG’s own application experience includes BOP and downhole hydraulic control systems. Its technical materials specifically highlight the advantage of stainless steel coiled tubing over conventional high-pressure hoses in applications requiring bending flexibility, high-pressure capability and long service life.

Inspection & Quality Control

Hydraulic control tubing can be supplied with inspection and testing according to project requirements, including dimensional inspection, eddy current testing, hydrostatic testing, ultrasonic testing and other specified verification.

BAOFENG’s coiled tubing manufacturing system includes dedicated equipment for pressure testing, eddy current testing and ultrasonic inspection, supporting continuous tubing quality control throughout production.

From Tubing to a Complete Control Line

The solution can be configured according to the complete operating requirement rather than only the tubing specification.

BAOFENG can support:

Material selection → Tube sizing → Continuous length → Pressure requirement → Inspection & testing → Coil preparation → Project-specific delivery

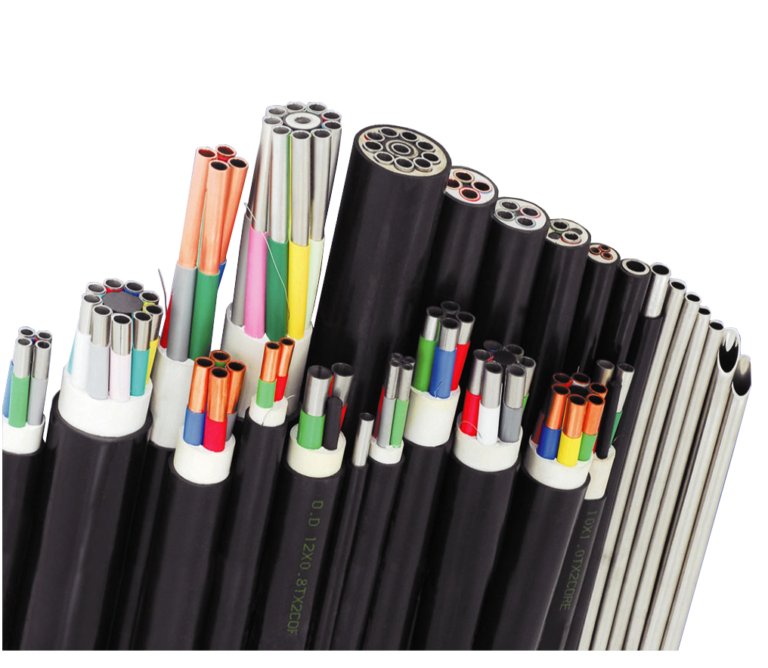

For projects requiring additional mechanical or environmental protection, the tubing can also be combined with encapsulated or multicore control line configurations.

Reduce Connections. Improve Reliability.

For offshore, subsea and downhole installations, reducing field joints means fewer potential leakage points, less installation work and lower maintenance exposure.

BAOFENG combines long-length seamless tubing, corrosion-resistant material options and project-specific testing to support reliable hydraulic control lines for demanding industrial environments.

Send us your required material, OD × WT, working pressure and continuous length, and our team can recommend a suitable hydraulic control line configuration.
