High-Purity Gas & Semiconductor Tubing

High-Purity Gas & Semiconductor Tubing Solution

BAOFENG provides long-length seamless stainless steel coiled tubing solutions for high-purity gas and semiconductor process systems where cleanliness, low particle generation and reduced field welding are critical.

The tubing can be supplied with bright annealed surfaces, controlled cleaning, nitrogen purging and protective packaging according to project cleanliness requirements.

Why High-Purity Systems Need Different Tubing

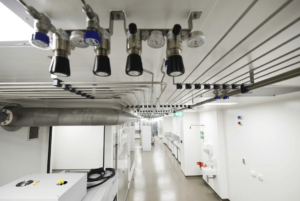

High-purity gas and semiconductor process systems are highly sensitive to particles, moisture, surface contamination and residues generated during installation.

Traditional systems assembled from short straight tube sections require multiple fittings or field welds.

Each additional connection may introduce:

• Welding particles and fumes
• Internal surface contamination
• Additional inspection work
• Potential corrosion at welded areas
• More installation time
• Additional potential contamination points

BAOFENG’s technical materials specifically identify excessive field welding as a concern in semiconductor and ultra-high-purity piping systems.

Reduce Field Welding with Long-Length Seamless Tubing

Long-length seamless coiled tubing can significantly reduce the number of field welds required in a clean piping system.

For example, a 200 m piping route assembled from 4 m straight tubes would require many intermediate welds. A continuous 200 m seamless coil can eliminate those intermediate tube-to-tube welds.

This helps reduce installation work while also lowering the number of potential particle and contamination sources inside the system. BAOFENG uses this exact comparison in its clean coiled tubing technical materials.

Typical Applications

BAOFENG high-purity tubing solutions can support:

• Semiconductor process gas systems

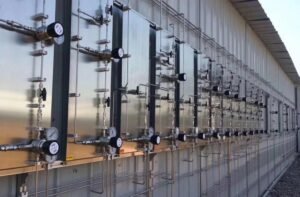

• Ultra-high-purity gas distribution
• Specialty gas systems
• High-purity gas production
• Pharmaceutical process lines
• Biotechnology systems
• Laboratory gas systems
• Analytical instrument tubing
• High-vacuum process systems

BAOFENG specifically identifies high-purity gas production, semiconductor, pharmaceutical and biotechnology industries as applications for ultra-clean tubing.

Bright Annealed Surface

For high-cleanliness applications, tubing can be supplied with a Bright Annealed (BA) internal surface.

A controlled internal surface helps reduce areas where particles, moisture or process contaminants may remain.

The required surface condition is selected according to the process gas, cleanliness level and project specification.

Cleanroom Nitrogen Purging & Packaging

For applications with particularly high cleanliness requirements, BAOFENG can support:

• Cleanroom handling
• Nitrogen purging
• Controlled internal cleanliness
• Protective end sealing
• Clean packaging

BAOFENG’s technical documentation specifically states that tubing for high-cleanliness applications can be nitrogen purged and packaged in a cleanroom environment.

Applicable Standards

Typical standards include:

• ASTM A269
• ASTM A270

The final applicable standard depends on the tubing application, material, surface requirement and project specification.

BAOFENG identifies ASTM A269 / A270 for high-purity gas tubing applications in its own technical materials.

Long-Length Capability

BAOFENG seamless coiled tubing has a standard dimensional capability of approximately:

• Outside Diameter: 3–38 mm
• Wall Thickness: 0.5–4 mm

For smaller tube sizes, continuous seamless lengths can reach approximately 3,000 m depending on material, dimensions and project requirements.

This long-length capability can significantly reduce the number of intermediate connections in high-purity distribution systems.

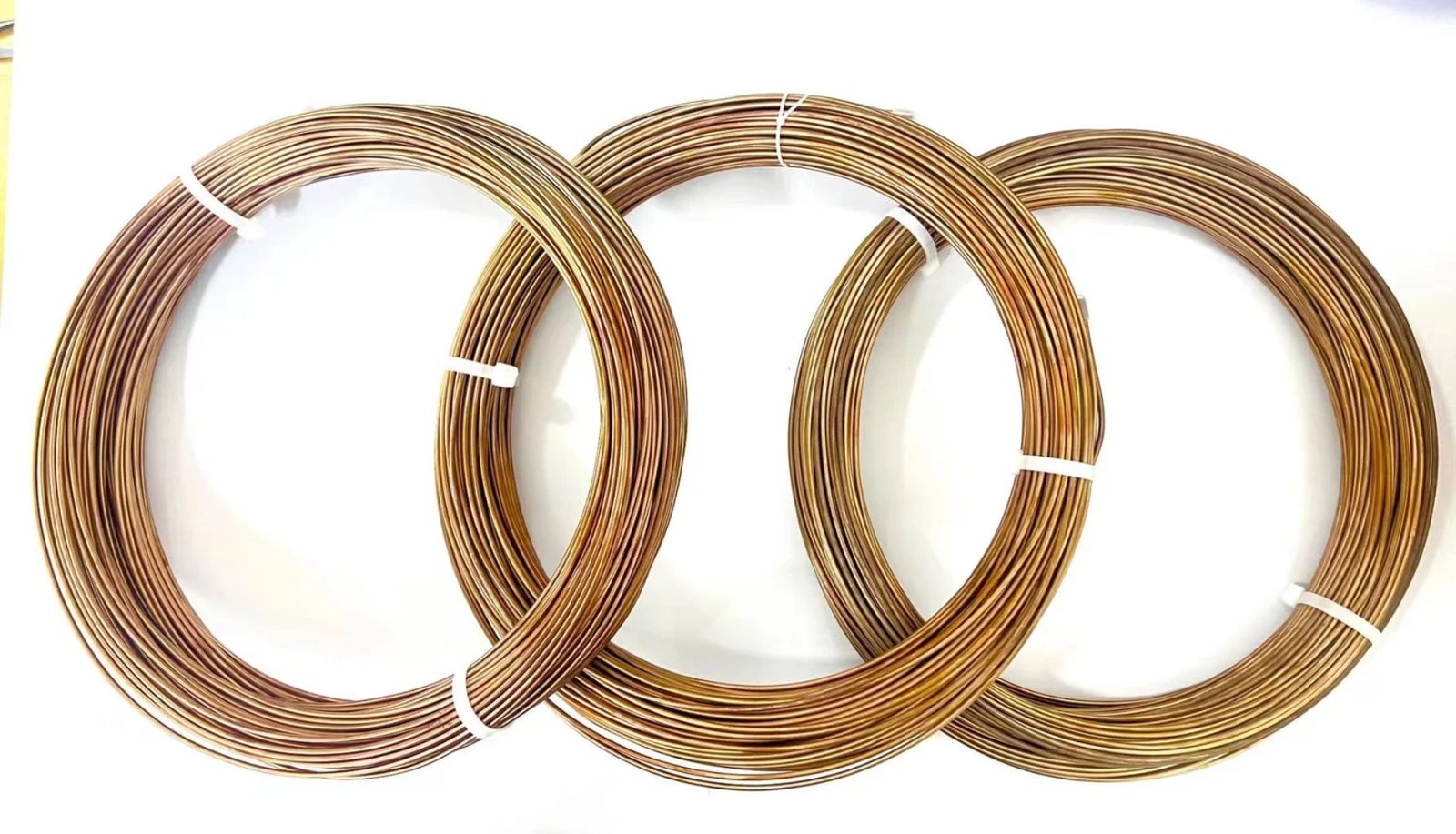

BA-Grade Silicon-Coated Tubing

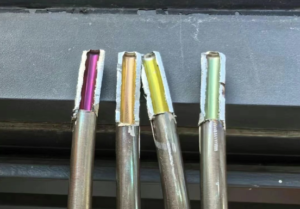

For applications requiring even lower adsorption and improved surface inertness, BAOFENG can also provide silicon-coated BA stainless steel coiled tubing.

The inert silicon coating can help reduce adsorption and retention of trace compounds on the tubing surface.

This is especially relevant for:

• Trace gas analysis
• Hydrogen analysis systems
• Semiconductor high-vacuum systems
• Analytical instrumentation
• Medical and laboratory fluid systems

BAOFENG’s technical materials describe silicon-coated BA tubing as a solution for reducing adsorption of highly polar trace compounds and improving performance in high-vacuum semiconductor applications.

High-Vacuum Semiconductor Applications

In semiconductor manufacturing, microscopic surface defects can retain residual air and moisture during vacuum evacuation.

BAOFENG’s silicon-coated tubing fills very small surface irregularities and helps reduce retained air and moisture, supporting faster vacuum evacuation and cleaner internal surfaces.

Inspection & Quality Control

BAOFENG seamless coiled tubing is subject to air-tightness testing and eddy current inspection.

Additional hydrostatic and ultrasonic testing can be arranged according to project requirements.

For high-purity projects, inspection requirements can also be combined with specified surface condition, cleanliness, purging and packaging requirements.

From Tubing to a High-Purity Gas Solution

BAOFENG can configure the tubing supply according to the complete cleanliness requirement:

Material → OD & wall thickness → Continuous length → Surface condition → Cleaning → Nitrogen purging → End protection → Clean packaging → Inspection → Project delivery

This allows the tubing specification to be matched to the complete high-purity piping requirement rather than only the dimensional specification.

Project-Based Configuration

To recommend a suitable high-purity tubing configuration, please provide:

• Process gas or fluid
• Required material
• OD × wall thickness
• Required continuous length
• Surface finish requirement
• Cleanliness level
• Purging requirement
• Packaging requirement
• Operating pressure
• Operating temperature
• Applicable standard
• Inspection requirement

BAOFENG can then recommend a suitable seamless coiled tubing configuration according to the cleanliness and operating requirements of the project.
